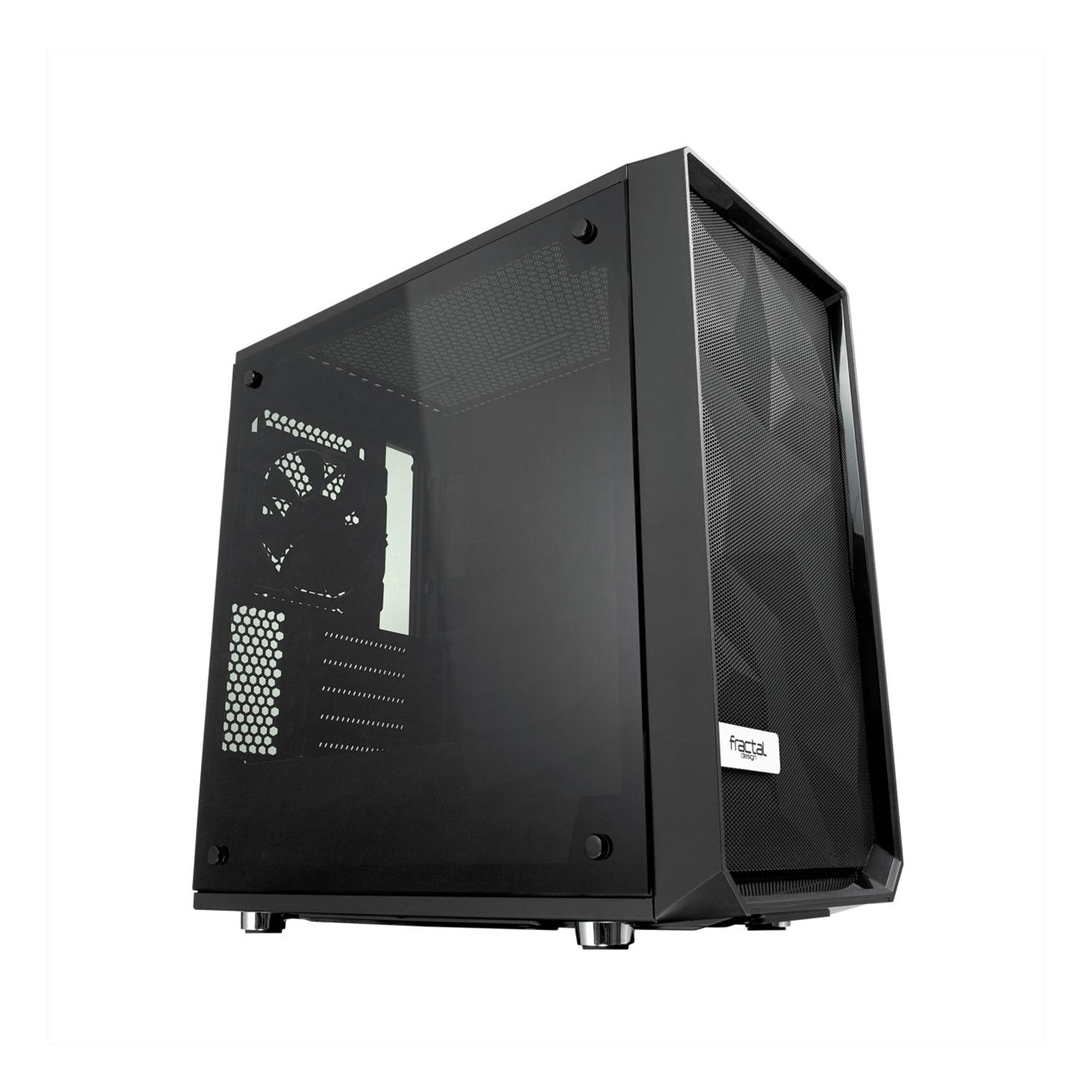

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C Mini – Dark TG carves a space uniquely its own as a new force in high-airflow design. Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.
A compact yet spacious open Micro ATX layout creates an unrestricted airflow path from front intakes directly through key components to exhaust, ensuring heat is never an issue.
The Meshify C Mini – Dark TG has a remarkably compact footprint with the high-end component support of a larger tower, and with six fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.
When performance is top priority and compromise is not an option, Meshify has you covered in style.
Key features
- Streamlined high-airflow design
- The performance and capacity of a larger tower in a remarkably compact mATX designed tower
- Angular mesh front panel maximizes air intake
- Tinted tempered glass side panel for a clean looking exterior with full interior visibility
- Distinctive styling with stealthy black-on-black aesthetic
- Flexible storage options with room for up to 5 drives
- Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
- Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
- Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
- Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Specification
3.5" or 2.5" Drive capacity |
2 |
Dedicated 2.5" drive capacity |
3 |
Expansion slots |
5 |
Motherboard compatibility |
mATX, ITX |
Power supply type |
ATX |
Total fan mounts |
7 |
Front fan |
3x 120 or 2x 140 1x Dynamic X2 GP-12 included |
Top fan |
2x 120/140 |
Rear fan |
1x 120 1x Dynamic X2 GP-12 included |
Bottom fan |
1x 120 |
Side fan |
No |
Dust filters |
Bottom fan + PSU Front fans Top panel |
Front radiator |
120/240mm 140/280mm (max width 144mm) |
Top radiator |
120/240mm (max component height on motherboard 40 mm) |
Rear radiator |
120mm (max width 125mm) |
Power supply depth limit |
Maximum 175mm recommended |
Graphics card length limit |
Max 315mm with front fan mounted |
CPU cooler height limit |
172mm |
Cable routing |
15-35mm space |
Cable routing grommets |
Yes |
Fixed Velcro straps |
Yes |
Captive thumbscrews |
Both side panels SSD brackets |
Left side panel |
Tempered glass panel |
Case dimensions (LxWxH) |
395 x 212 x 399 mm |
Case dimensions w feet/protrusions/screws |
409 x 217 x 412 mm |
Net weight |
6.28 kg |
Package dimensions (LxWxH) |
502 x 295 x 484mm |
Package weight |
7.41 kg |
Package contents
- Meshify C Mini – Dark TG computer case
- User manual
- Accessory box
- Top filter
Additional information
- EAN: 7340172700111
- UPC: 843276100117
- Product code: FD-CA-MESH-MINI-C-BKO-TGD
