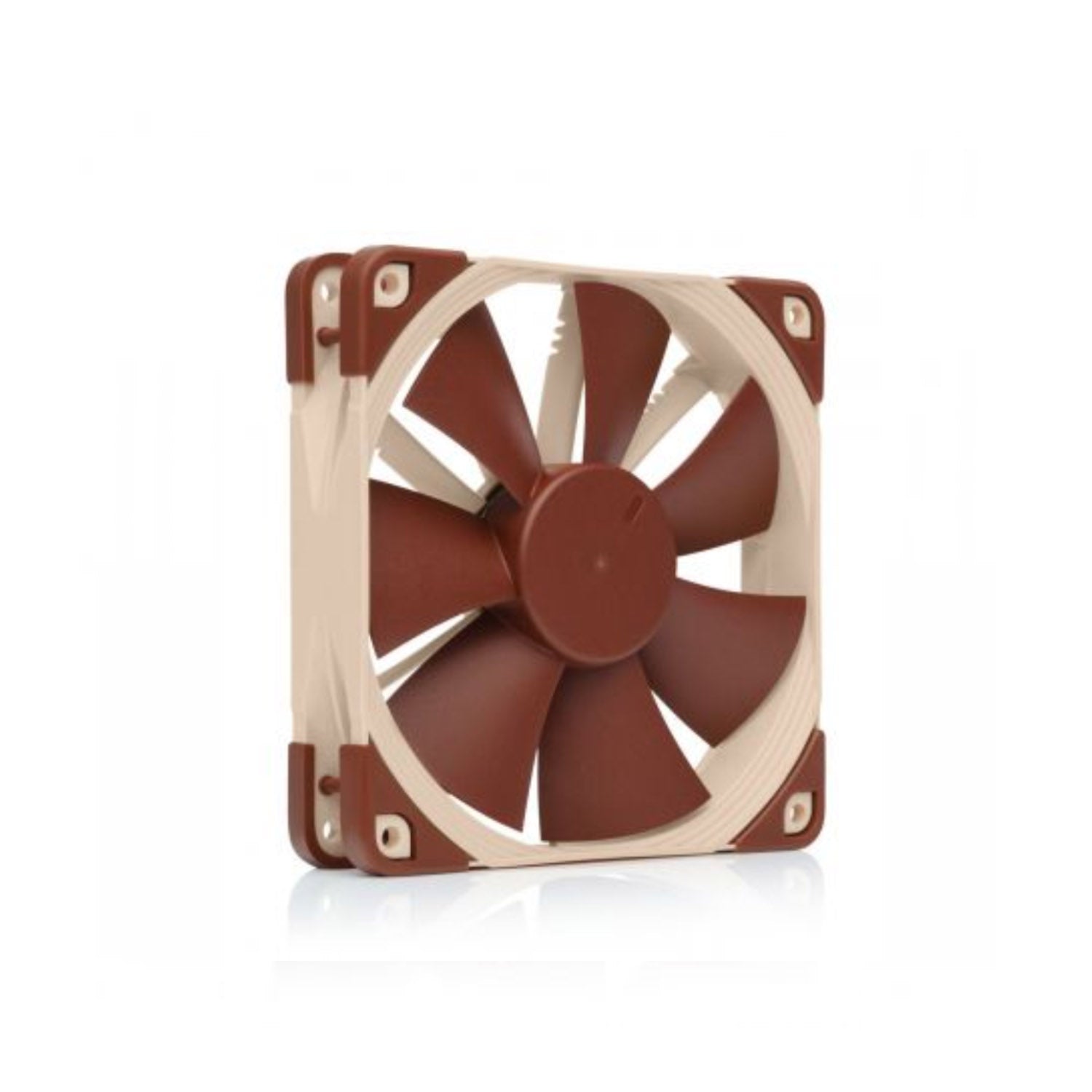

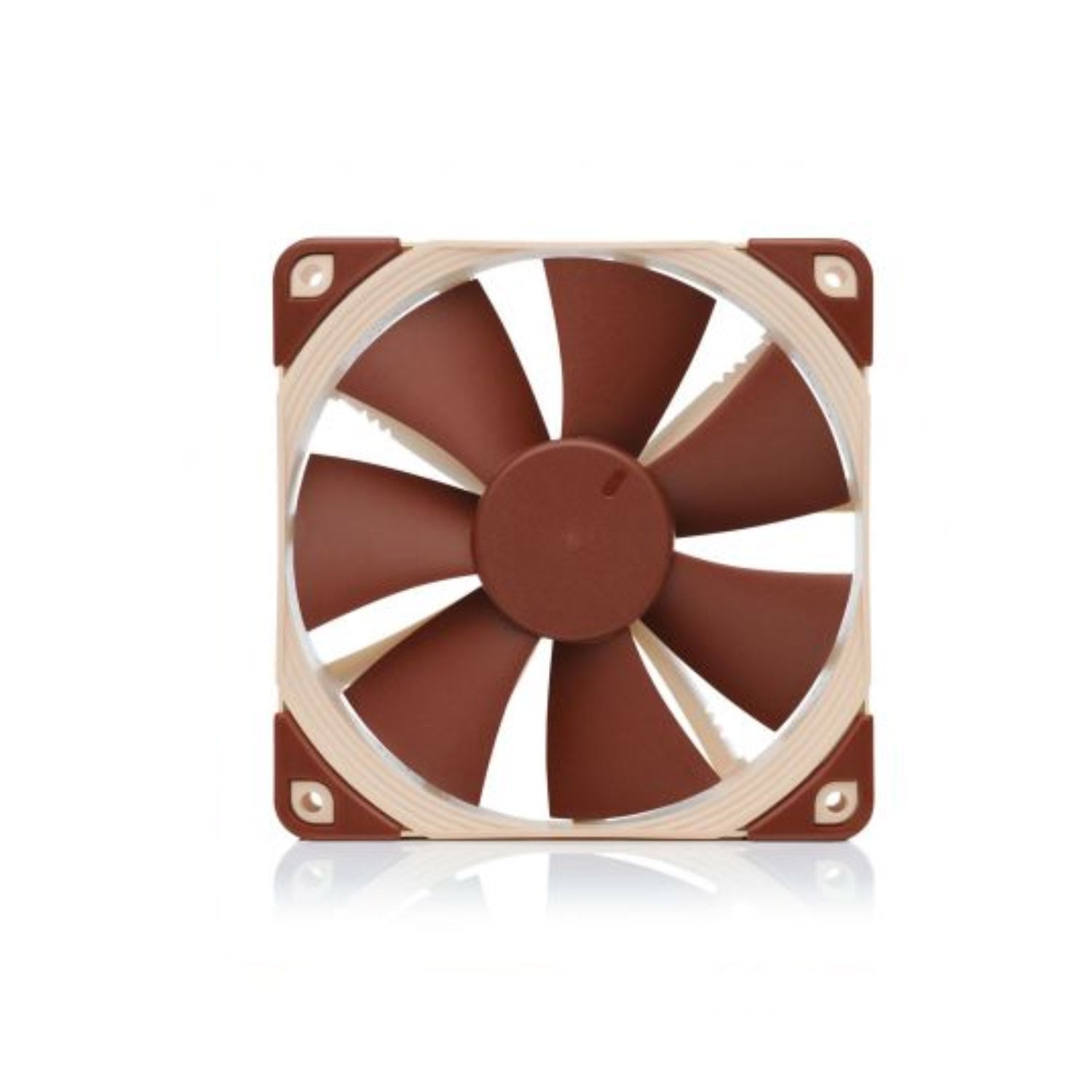

Noctua NF-F12 PWM (NF-F12-PWM)
Couldn't load pickup availability
Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow™ system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua’s new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.
|
|
|
Size
120x120x25 mm
|
|
|
Mounting hole spacing
105x105 mm
|
|
|
4-pin PWM
|
|
|
Cable length
20cm + 30cm NA-EC1 extension cable
|
|
|
Bearing
|
|
|
Blade geometry
Heptaperf™
|
|
|
Frame technology
|
|
|
Rotational speed (+/- 10%)
1500 RPM
|
|
|
Rotational speed with L.N.A. (+/- 10%)
1200 RPM
|
|
|
Min. rotational speed (PWM, +/-20%)
300 RPM
|
|
|
74,3 m³/h
|
|
|
Acoustical noise
22,4 dB(A)
|
|
|
Acoustical noise with L.N.A.
18,6 dB(A)
|
|
|
Static pressure
2,61 mm H₂O
|
|
|
Static pressure with L.N.A.
1,83 mm H₂O
|
|
|
Max. input power
0,6 W
|
|
|
Max. input current
0,05 A
|
|
|
Operating voltage
12 V
|
|
|
MTTF
> 150.000 h
|
|
|
Scope of delivery
|
