  3. Thermaltake Divider 170 TG Snow M-ATX Casing (CA-1S4-00S6WN-00)
By Thermaltake

Thermaltake Divider 170 TG Snow M-ATX Casing (CA-1S4-00S6WN-00)

₱4,129.00
₱4,129.00
Availability: In stock
SKU:
Collections:
₱4,129.00
₱4,129.00

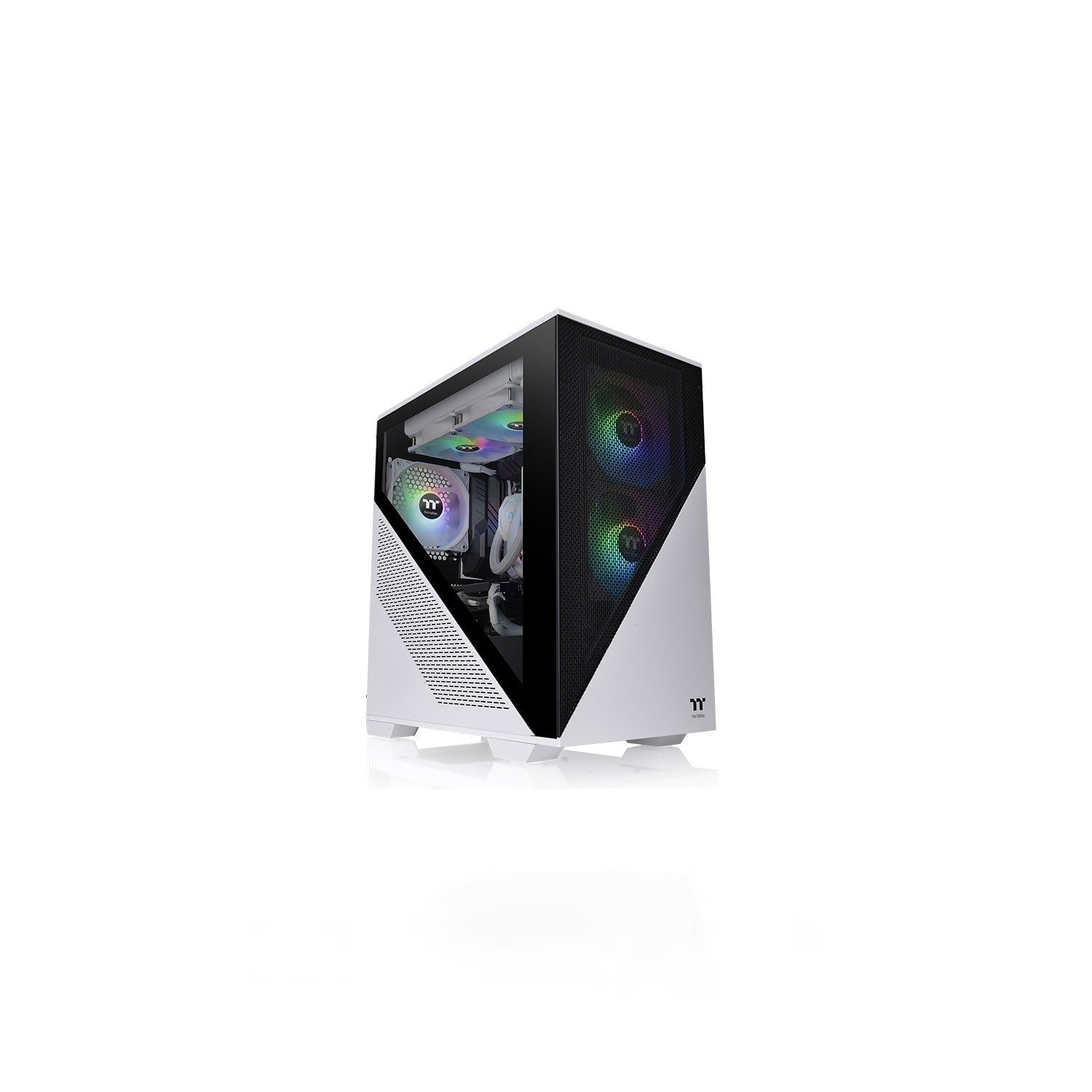

Thermaltake Divider 170 TG Snow ARGB Micro Chassis

Thermaltake designed a brand-new case series that containing stylish side panels and powerful airflow performance blending all the functionality into the Divider Series.

Modern design with Divider 170 TG Snow ARGB’s left panel gives the chassis a unique look while offering a great view of the interior. With two pre-installed ARGB PWM fans, you can enhance the cooling performance with exceptional customizable lighting. The Divider 170 TG Snow ARGB Micro Chassis is the next-gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.




  • The image is for reference only.






  • The image is for reference only.


  • The image is for reference only.

Air Intake and Exhaust

The cooling performance of the Divider 170 TG ARGB is excellent. The large airflow-optimized mesh panel at the front allows optimal air intake. Cooling exhausts are located at the rear of the case.


  • The image is for reference only.

Excellent Hardware Support & Cooling Solution
The Divider 170 TG Snow ARGB has great hardware support. It can support a CPU cooler with a maximum height of 160mm, VGA with maximum length of 350mm (without radiator), a power supply with a length of up to 200mm (with HDD Cage), two 3.5” HDDs with two 2.5” SSDs or a total of three 2.5” SSDs. When it comes to cooling, the Divider 170 TG Snow ARGB comes preinstalled with two hydraulic bearing 120mm ARGB PWM fans which can effectively lower the operation noise and enhance the thermal efficiency, you can also choose to put two 140mm fans at the front and one 120mm fan at the rear. Moreover, it can hold up to two 120mm fans at the top. For radiator compatibility, it can support up to 280mm at the front.
Dimensions
HDD-1
HDD-2
Fan Capacity
Radiator Capacity

CPU Cooler

Max height 160mm

Motherboard

Micro ATX, Mini ITX


PSU

Max length
200mm (with HDD Cage)


VGA

Length limitation
300mm (with radiator)
350mm (without radiator)









More Information
P/N CA-1S4-00S6WN-00
Series Divider
CASE TYPE Micro Case
Dimension (H x W x D) 426 x 210 x 408.5 mm
(16.8 x 8.3 x 16.1 inch)
NET WEIGHT 5.26 kg / 11.6 lbs.
PANEL 3mm Tempered Glass x 1
Color White
MATERIAL SPCC
COOLING SYSTEM Front(intake):
120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 2
Drive Bays
-Accessible
-Hidden		 2 x 3.5”, 2 x 2.5” or 4 x 2.5”
EXPANSION SLOTS 4
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port USB 3.0 x 2, USB 2.0 x 1, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm
RADIATOR SUPPORT Front:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 240mm, 1 x 120mm
1 x 140mm
Rear:
1 x 120mm
CLEARANCE CPU cooler height limitation:
160mm
VGA length limitation:
300mm(With radiator)
350mm(Without radiator)
PSU length limitation:
200mm (With HDD Cage)
